Large Processing Volume Spiral Sand Stone Washer , Ore Washing Equipment
Introduction of Spiral Sand Stone Washing Machine
Spiral Sand Stone Washing Machine is widely used for washing separation, classification and removal of extraneous materials in such industries as metallurgy, building materials, and water resources and hydropower, and it is applicable for washing separation of fine and coarse materials, especially sand for building and road construction.
Features of Spiral Sand Stone Washing Machine
The screw sand washing machine has the advantages of reasonable structure, convenient maintenance, large processing volume, less power consumption and high cleanness. The novel seal structure and full closed oil bath transmission device and adjustable overflow weir plate ensure that this series products possess the features of high efficiency, durable, clean, favorable dehydrate effect, stable fineness of finished materials, simple structure, transmission bearing of impeller depart from water and material, the loss of fine sand occupy very small proportion.
Technical parameters:
| Model | Spiral diameter (mm) | Trough length (mm) | Capacity (t/h) | Power (kW) | Overall dimension L×W×H(mm) | Weight (t) |
| XSL0550 | 500 | 5000 | 10-20 | 3 | 6540×1220×1630 | 2.5 |
| XSL0765 | 750 | 6500 | 20-50 | 5.5 | 8380×1570×1920 | 4.3 |
| XSL1075 | 1000 | 7500 | 50-80 | 7.5 | 9550×1920×2270 | 6.7 |
| XSL1275 | 1200 | 7500 | 70-110 | 11 | 9700×2320×2660 | 10.8 |
| XSL1585 | 1500 | 8500 | 90-130 | 18.5 | 11000×2830×3150 | 13.7 |
| XSL1885 | 1800 | 8500 | 110-150 | 22 | 11100×3320×3620 | 15.4 |
| XSL2085 | 2000 | 8500 | 130-170 | 22 | 11340×3670×3880 | 19 |
Note: No further notice if the technical parameters change.

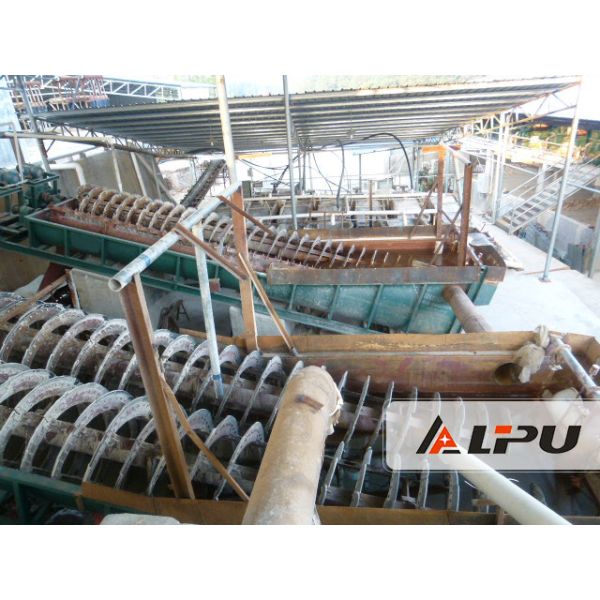

Sand Washing Machine Working Site:
